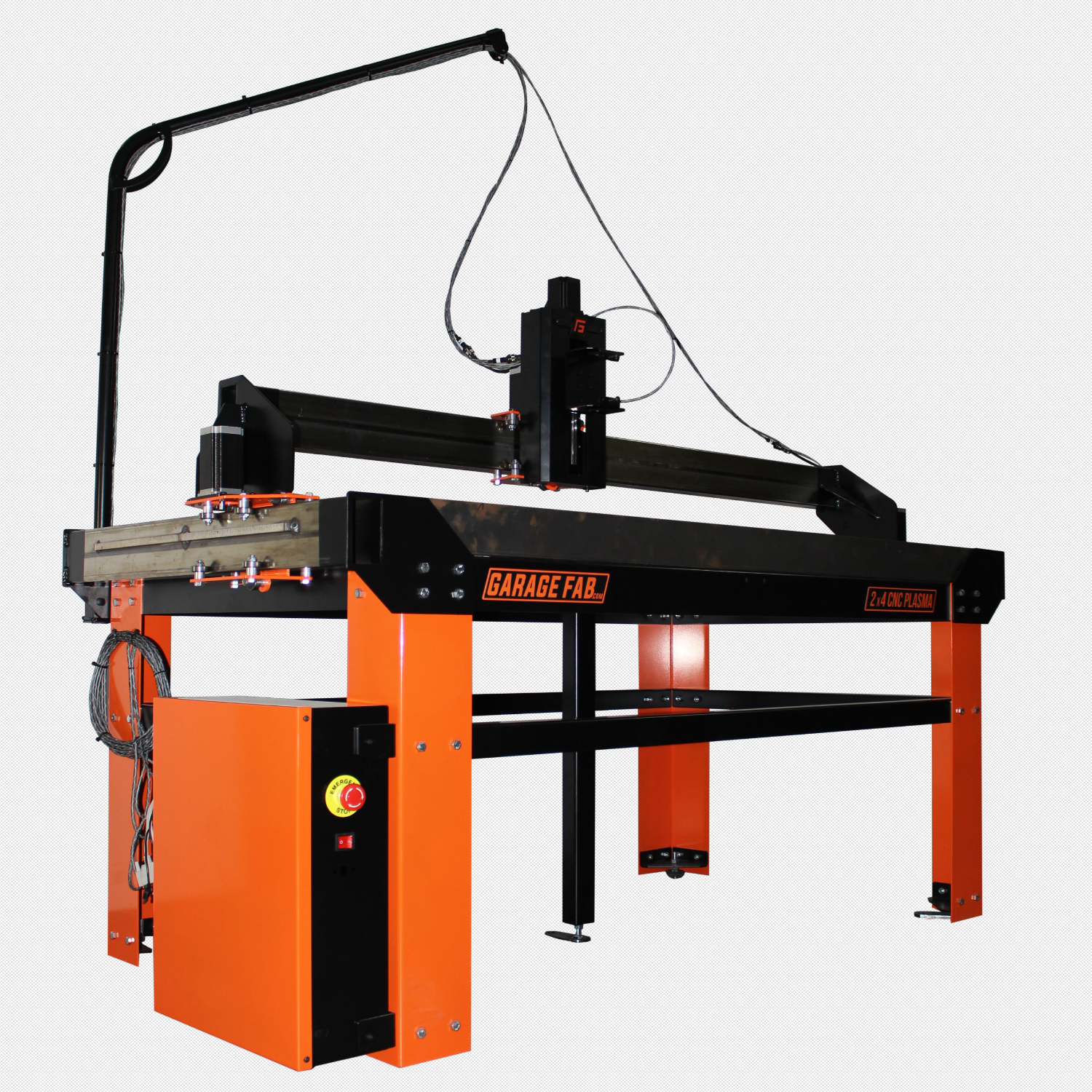

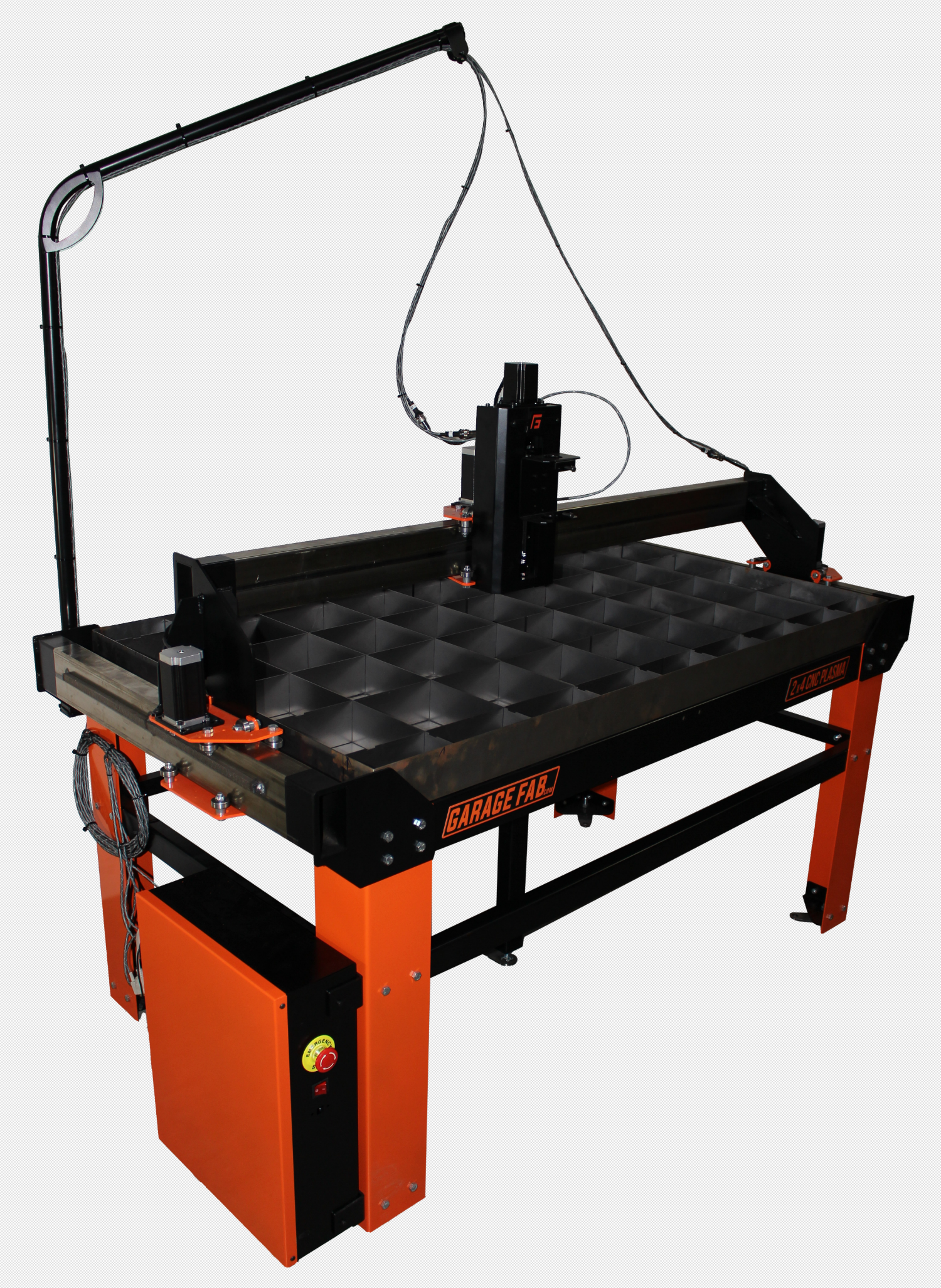

2×4 CNC Plasma Machine

Description

Machine specifications for the Garage Fab 2×4 CNC Plasma Machine :

– Axis cut range

(X – axis 48″) (Y – axis 48″) (Z – axis 5″)

– Table footprint size

(width – 72” ) (length – 39” ) (height to Z axis – 55” ) (height to cable management – 72” )

– Motor specifications

(X, Y, A – Nema 23 425oz stepper motors) (Z – Nema 23 270oz stepper motors)

– Stepper motor resolution – .005″

– Maximum travel speed 800 IPM

– Rack and pinion drive X and Y axis

– Ball screw drive Z axis

– Carriage and bearing motion system

Included with the Garage Fab 2×4 CNC Plasma Machine :

– Complete heavy duty bolt together frame kit

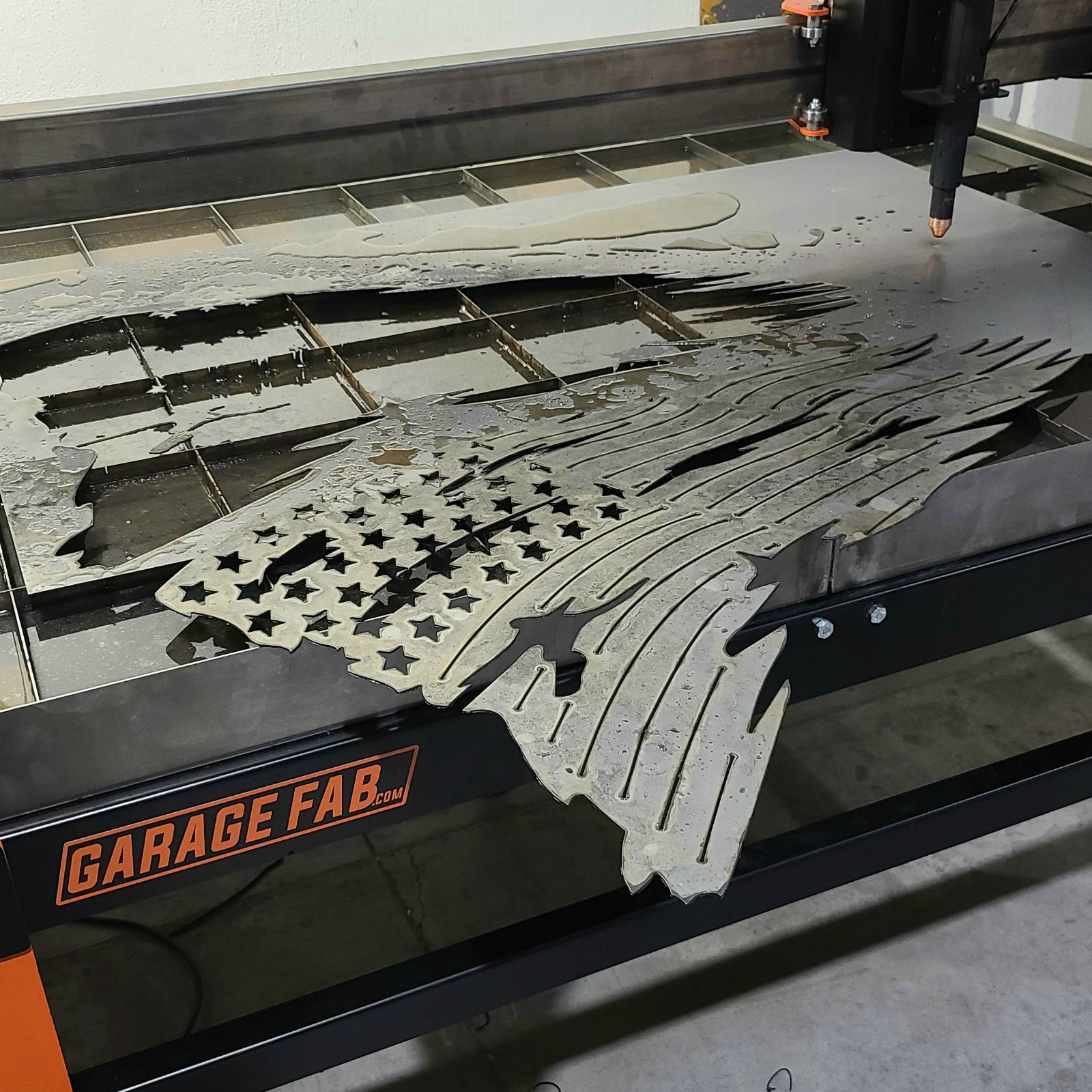

– Water tray and slat system “dry option built in”

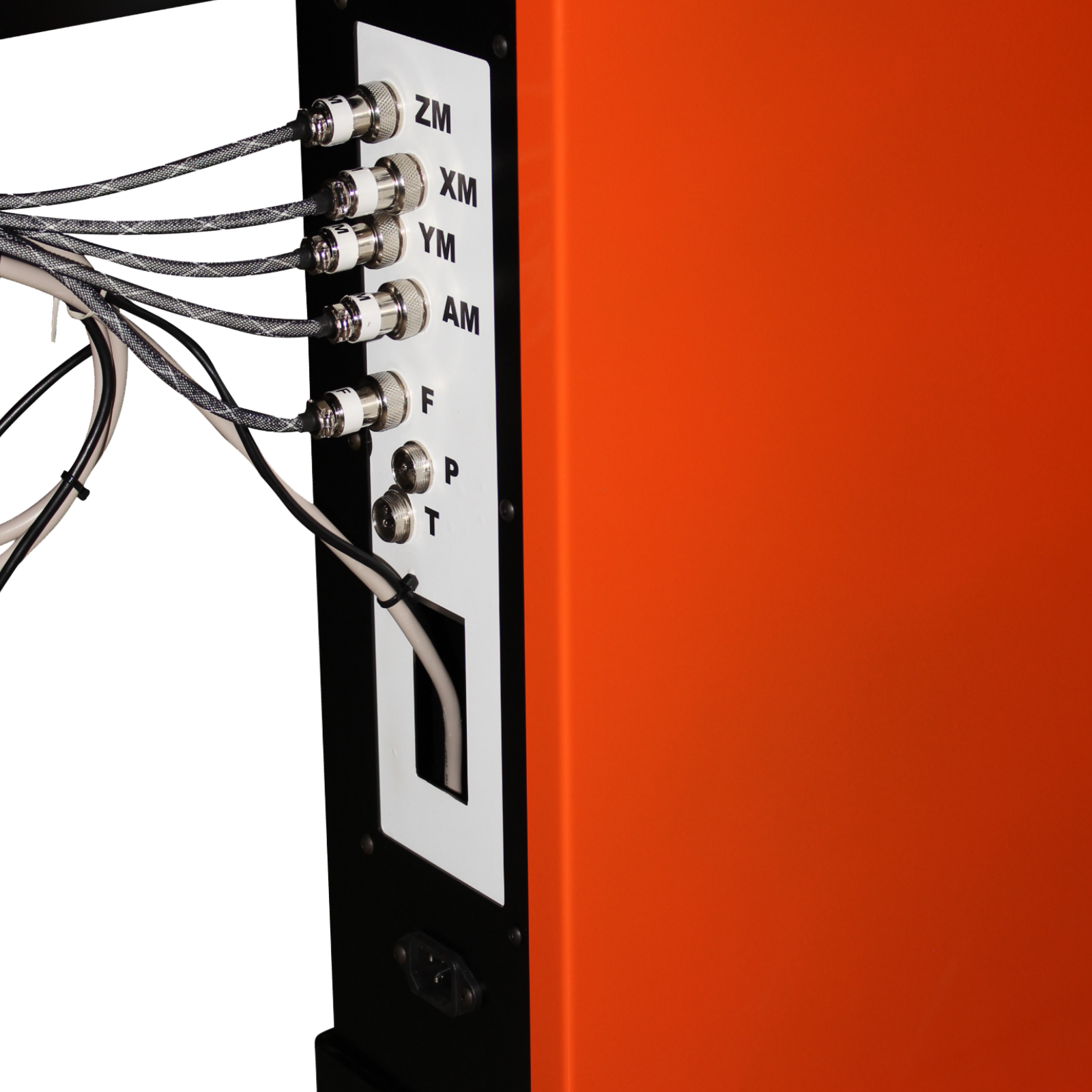

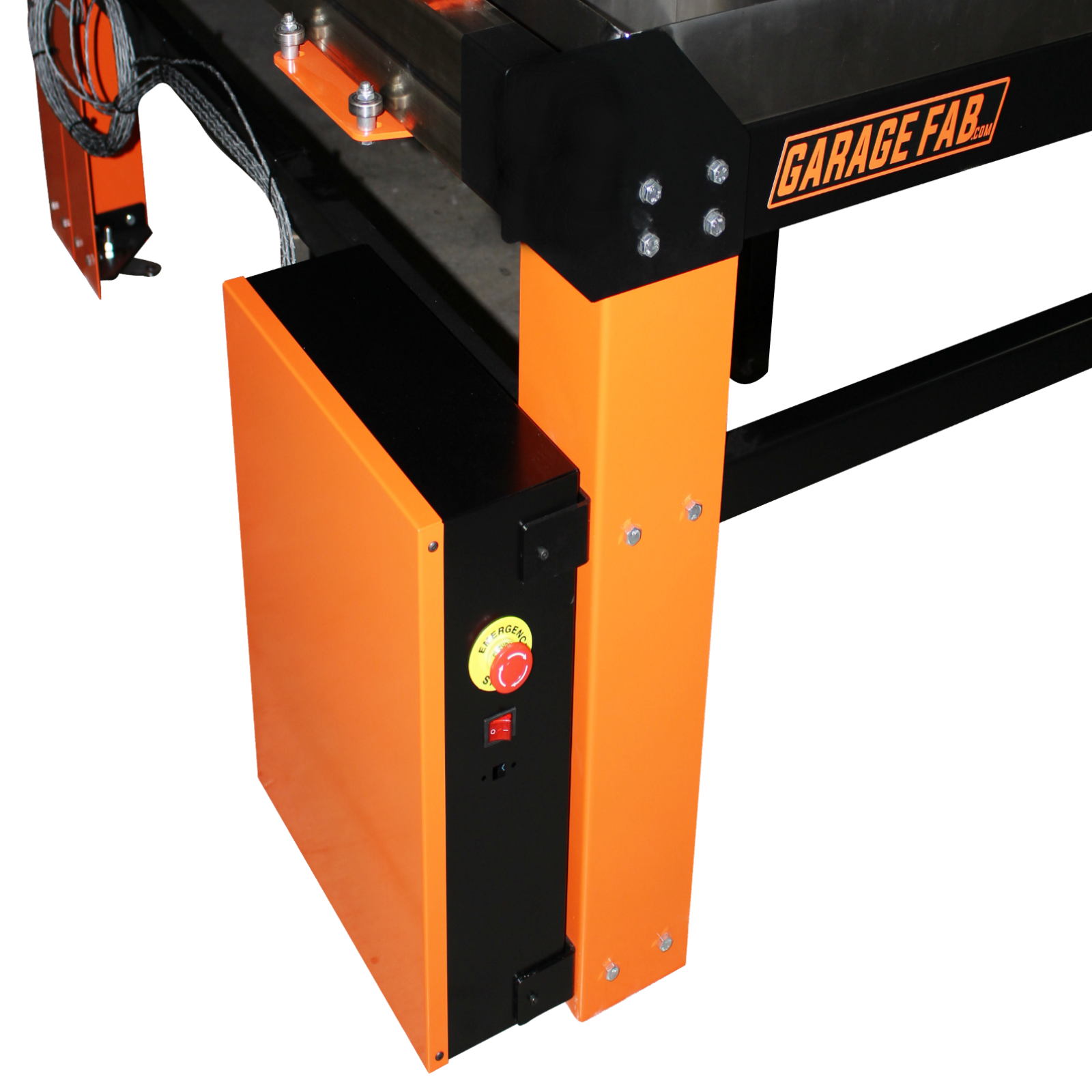

– Mounted control system

– Stepper drive system

– High speed ball screw drive Z axis

– Automatic torch touch off

– USB connectivity

– Garage Fab software profile package

– Expandable design, all tables can be expanded in size affordably

– 1 year warranty on electronic components

(*subject to review, void if user tampers with equipment)

– Lifetime guarantee on frame / structure components

(*subject to review, void if user tampers with equipment)

Needed for the Garage Fab 2×4 CNC Plasma Machine :

– Windows based laptop or desktop PC

– Licensing for SheetCam & Mach 3 software pack

(*can purchase direct from vendor or with us)

– Plasma cutter

(*can make many cutters work but requires CNC connectivity)

(*can purchase direct from vendor or with us)

– Communication Cable

(*multiple plasma brands available)

(*free if plasma cutter is purchased through us)

– Compressor, air filter / dryer, regulator, and flow meter

(*recommend choosing system that plasma cutter requires)

– Two 110v connections for controller and computer

– Most plasma cutters utilize single phase 220v connection

(*recommend consulting with your contractor based on the plasma cutters requirements)

– Optional Torch Height Control

(*all of our control systems are prepped for this option, however your plasma cutter must have this availability,

feel free to message to confirm compatibility can be added anytime)

Optional services available :

-Onsite install and setup

(*contact for quote based on distance, travel expenses etc.)

-Onsite training and operation

(*contact for quote based on distance, travel expenses etc.)

Shipping :

– We only sell machines that are complete and in stock but we do require 3 business days to package and prepare for shipment

(*excluded lead time days are holidays and weekends, actual ship times vary per freight company and destination requirements)

– Freight / shipping price that is advertised is shipped to your local terminal for pickup, only for domestic USA addresses

(*will include commercial addresses at same price *must have forklift *subject to confirmation of address and forklift)

(*residential deliveries available for additional $150.00 fee)

(*liftgate deliveries available for additional $150.00 fee)

– International freight available but needs to be quoted individually

(*please message with detailed requests for international shipping)

– We insure our shipments however freight requires inspection and verification at the time of delivery / pickup, failure to do so will release liability to the party receiving the order
